Lima C-36 Interior Detail Kit

NZ $20.00

Approximately $13.81
Product may vary slightly from image representation.
Add correct interior detail to your Lima passenger carriages. Note that this kit is for the 1st class carriages ONLY. Please see the Lima EE-2 Interior Detail Kit for 2nd class carriages

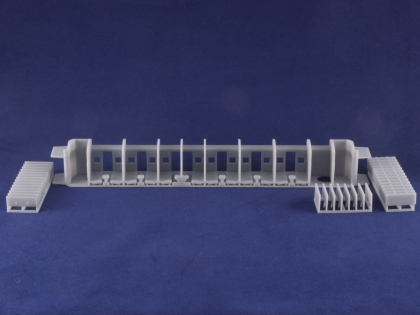

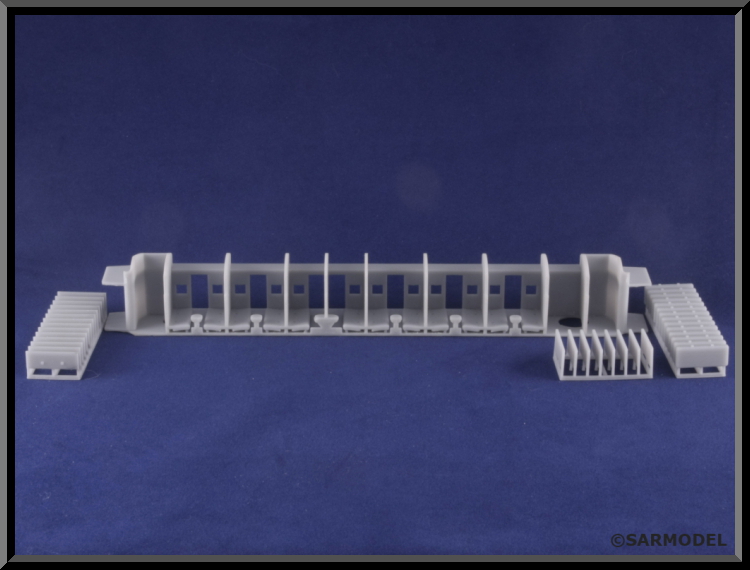

This kit includes:
  • Interior partitions and compartment details
  • Separately applied compartment doors so the modeller can model open or closed or anywhere in between
  • Separately applied bunks, so the modeller can model them deployed or stowed
  • Separately applied seat backrests, so the modeller can model them down for sleeping or up for sitting

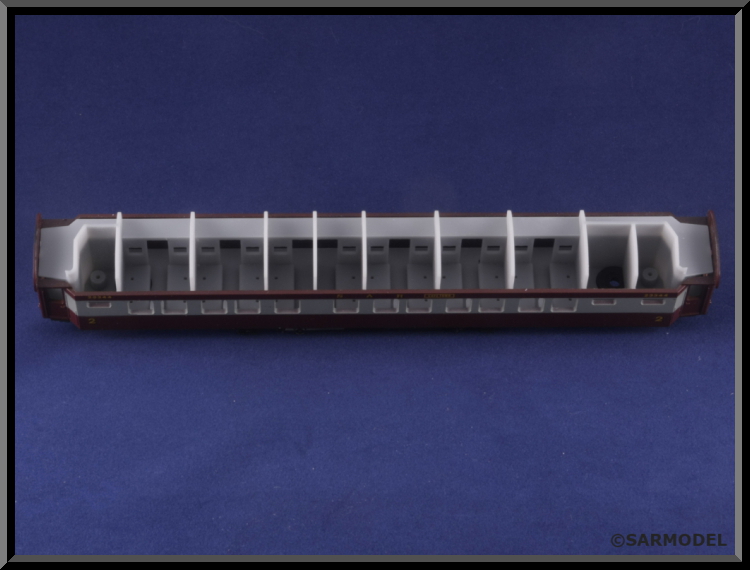

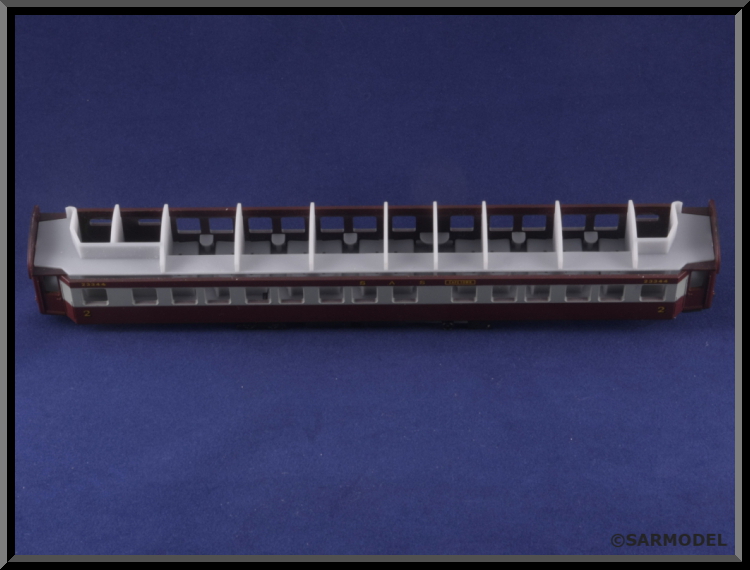

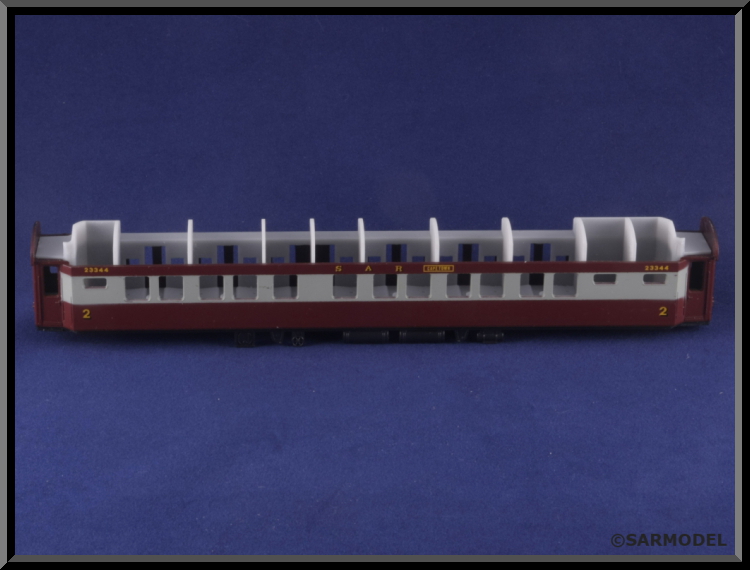

In order to fit, the lima windows must be cut off the roof 2mm below the gutter line. The insert has two screw lugs, on either end. The modeller should put the insert into the carriage body, then using the lugs as a guide, drill through the floor of the carriage with a 1.8mm drill. Once the holes in the body floor are drilled, widen them out to 2mm. The insert can then be screwed into the body using the two M2 screws provided. Once in place, the roof can be fitted and glued using epoxy to the insert, making the roof and insert a single unit. Strips of overhead transparency film can be used to simulate the window glass
